SFX Laser 60W Fiber Laser Engraving Machine MOPA JPT M7(E) Laser Source 1-4000kHz Frequency 125mm Rotary Axis and 175x175mm Lens are Included

stars, based on 0 reviews

$5899.00 unit
7items available
Contact Us

60W Fiber Laser Engraving Machine MOPA JPT M7(E) Laser Source 1-4000kHz Frequency 125mm Rotary Axis and 175x175mm Lens are Included

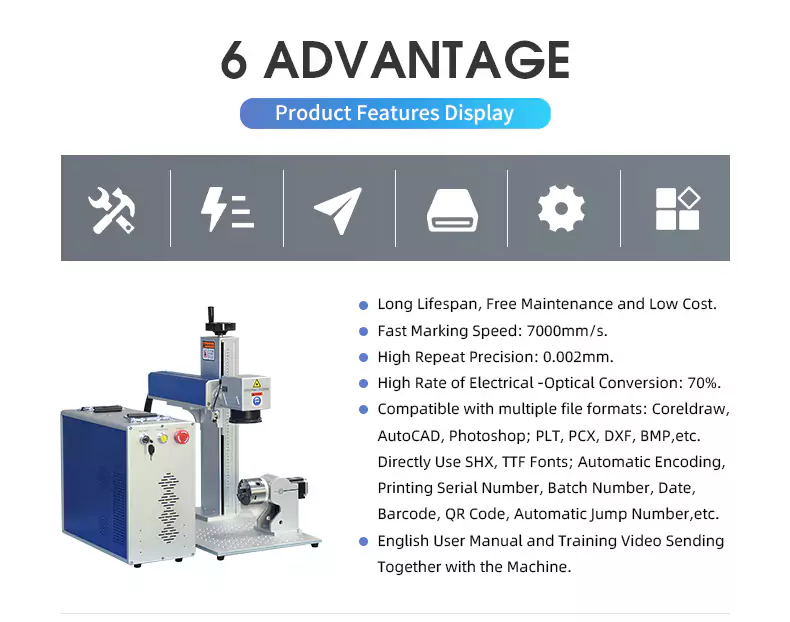

With MOPA laser source, the SFX laser engraving machine promises dynamic engravings—even in vivid colors on metals. The compact, desktop design ensures the laser marking machine fits snugly into any workspace, while its adjustable Z-Axis caters to a diverse range of marking needs, from intricate jewelry to sizable signages. With user-friendly EZCAD software and a 2-year warranty, you can purchase it without worry.

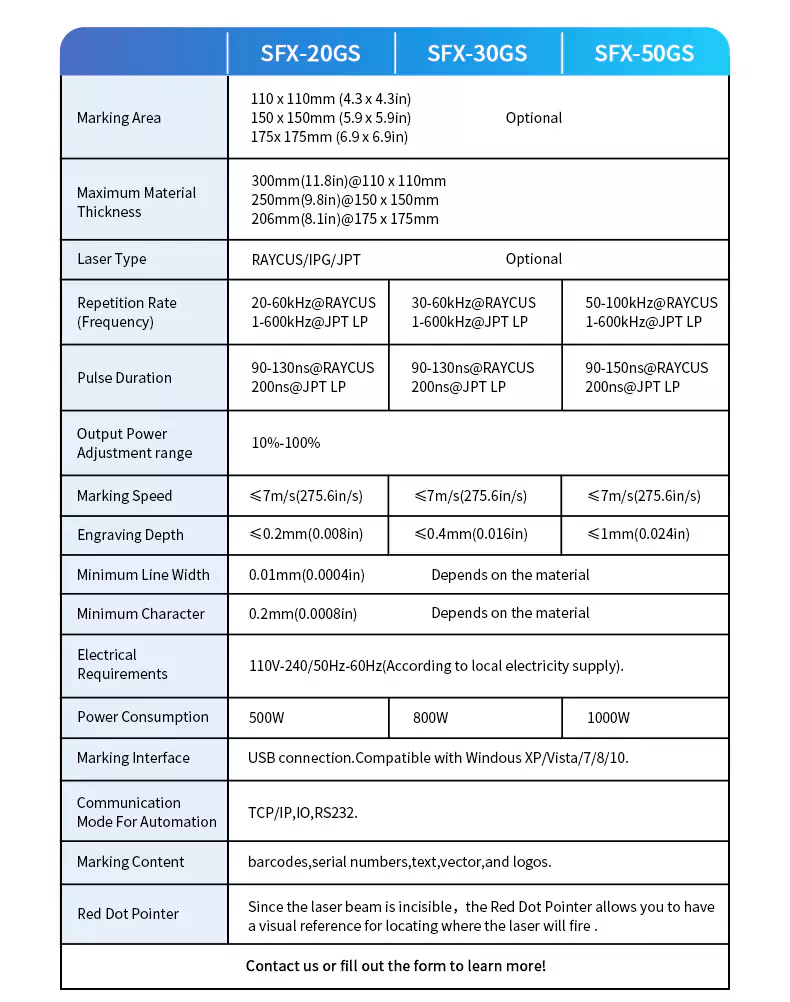

Specifications:

Name: 60W MOPA JPT Fiber Laser Engraving Machine

Engraving Method: Laser

Power: 60W

Model: SFX-60GS-M125

Minimum line width: 0.01mm(0.004in)

System: WinXP/Vista/Win7/Win8/Win10

Minimum character: 0.2mm(0.008in)

Repeat Marking Depth: ≤0.2mm

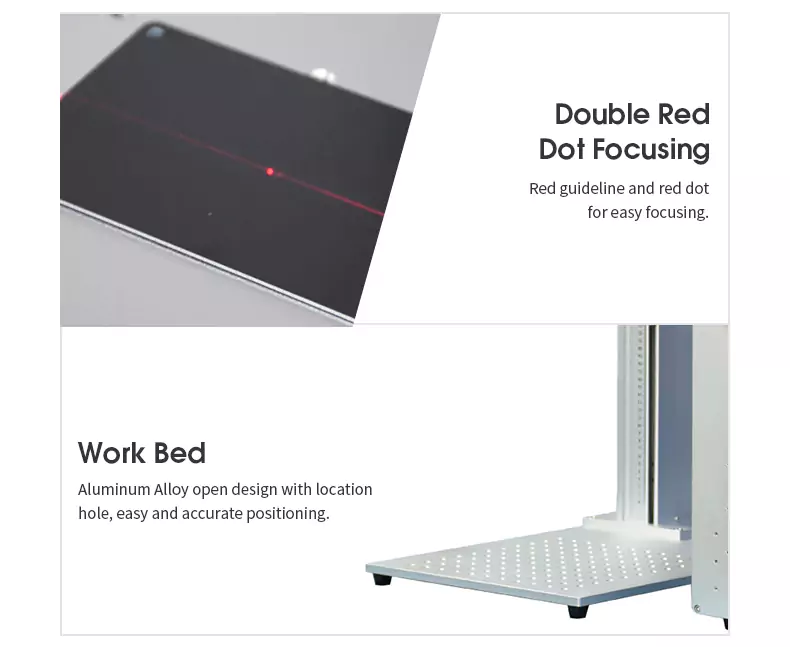

Manual Lifting Platform: Lifting range 150mm

Marking Area: 175×175mm (6.9×6.9in)

Marking Speed:≤7000mm/s

Software:EzCad2

Electrical Requirements:110V-240V/50Hz-60Hz

Engraving Depth:≤1.2mm

Maximum Material Thickness:206mm(8.1in)by 175×175mm lens

Laser Wavelength:1064nm

Connection:USB Connection

Repetition Rate (Frequency):1-4000kHZ-----MOPA JPT M7

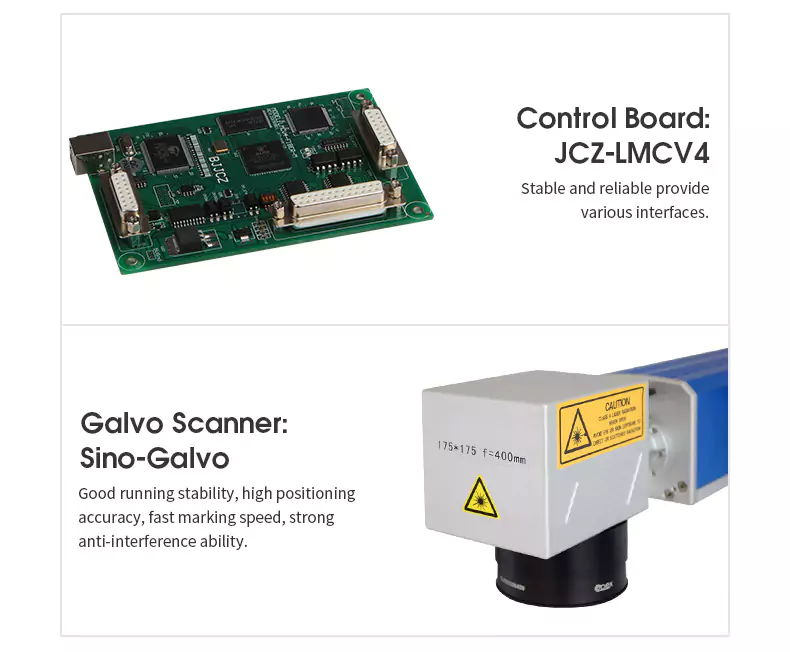

Galvometer:Sinogalvo Scanlab

Board:BJ JCZ

Lens: Wavelength

Graphic Format Supported: PLT/PCX/DXF/BMP/JPEG/DST/DWG/AI/LAS etc.

Packing Size: 785*505*810mm(30.93 x 19.9 x 31.91 in)

Gross Weight:65kg(143.3lbs)

Application of Mopa Laser Machine:

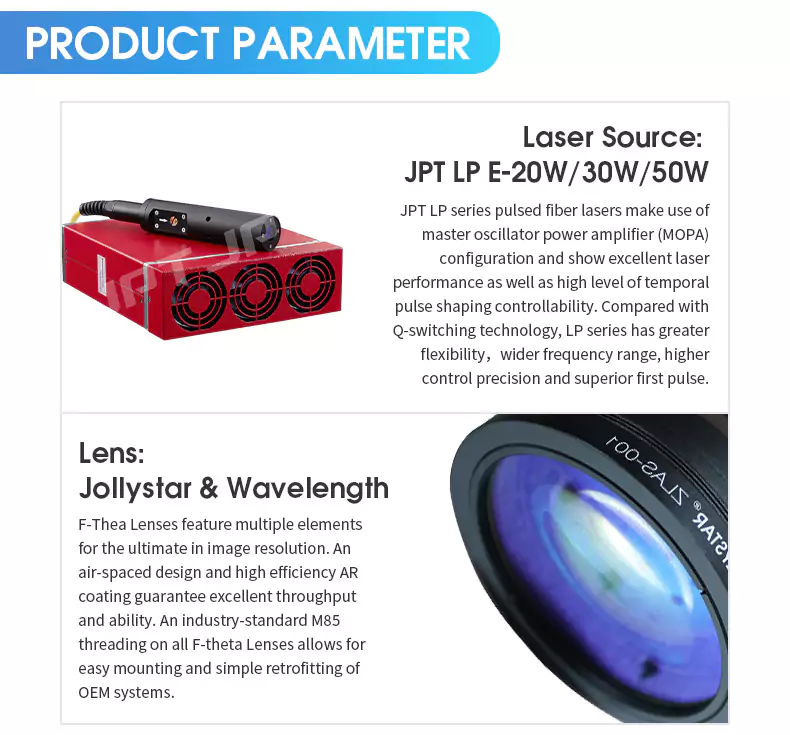

The repetitive working frequency and pulse width of ordinary lasers are generally fixed and not adjustable, while the working frequency of MOPA JPT M7 laser source can reach 1-4000kHz, pulse width is 2-500ns,wide adjustable range, wider application!!

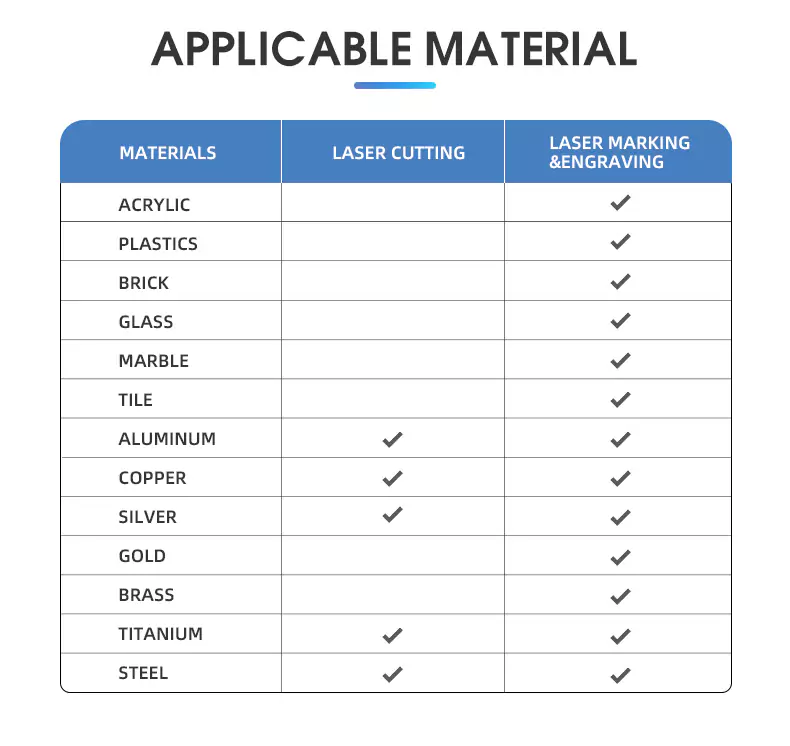

MOPA laser marking machine is suitable for the fine marking process of metal and non-metal materials, such as laser engraving of digital product parts, mobile phone keys, transparent keys, mobile phone shells, key panels, electronic components, oxidation, plastic marking, crafts and gifts , Oxidation treatment and surface treatment such as plating, electroplating and spraying.
MOPA laser marking machine is mainly used in stainless steel color marking, aluminum oxide blackening, anode stripping, coating stripping, semiconductor and electronics industries, plastic and other sensitive materials marking and PVC plastic pipe industry.

Main Advantages of MOPA Laser Source:

--2ns~350ns great pulse width adjustable range, additional continuous light mode, wide range of application materials
--Large frequency range, more applicable occasions
--High quality beam quality, better processing effect
--The first pulse is available, and the pulse response is faster, making fine processing possible
--0 light leakage, safer

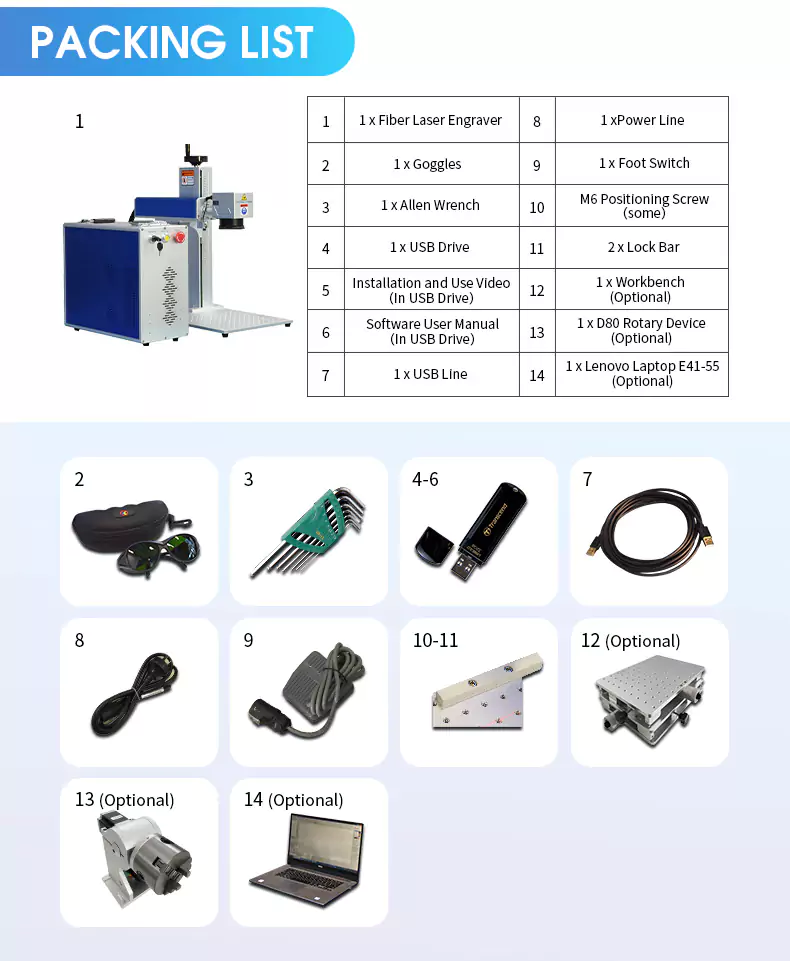

Packing List:

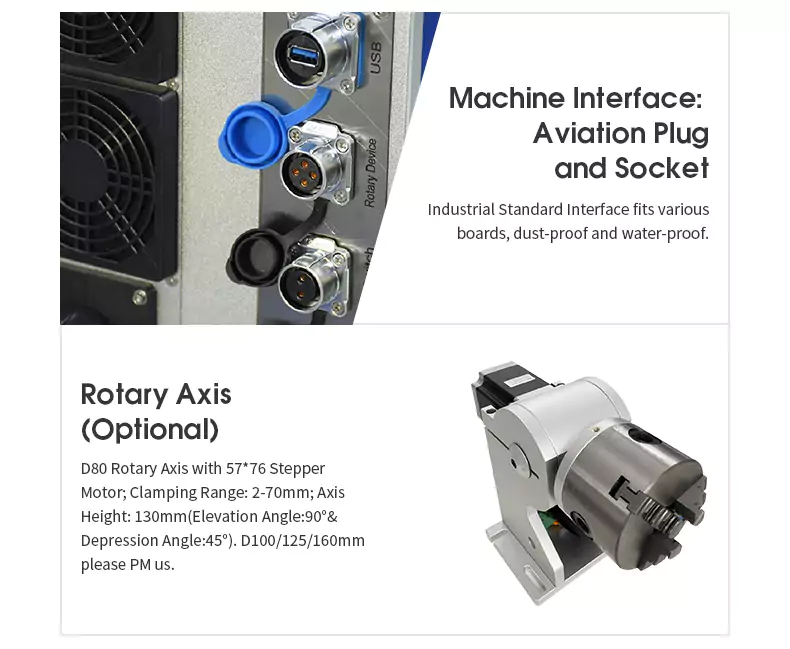

60W MOPA JPT(E) Fiber Laser Marking Machine+125mm Rotary Axis+175x175mm Lens

Service:

Free shipping with door to door service, ETA: 5-10 days.
No import duty and other charges for American customers, the website price is all you need to pay.
Customers from other countries, please contact customer service, thank you!!
2-years warranty, after-sales center located in MN, US.
