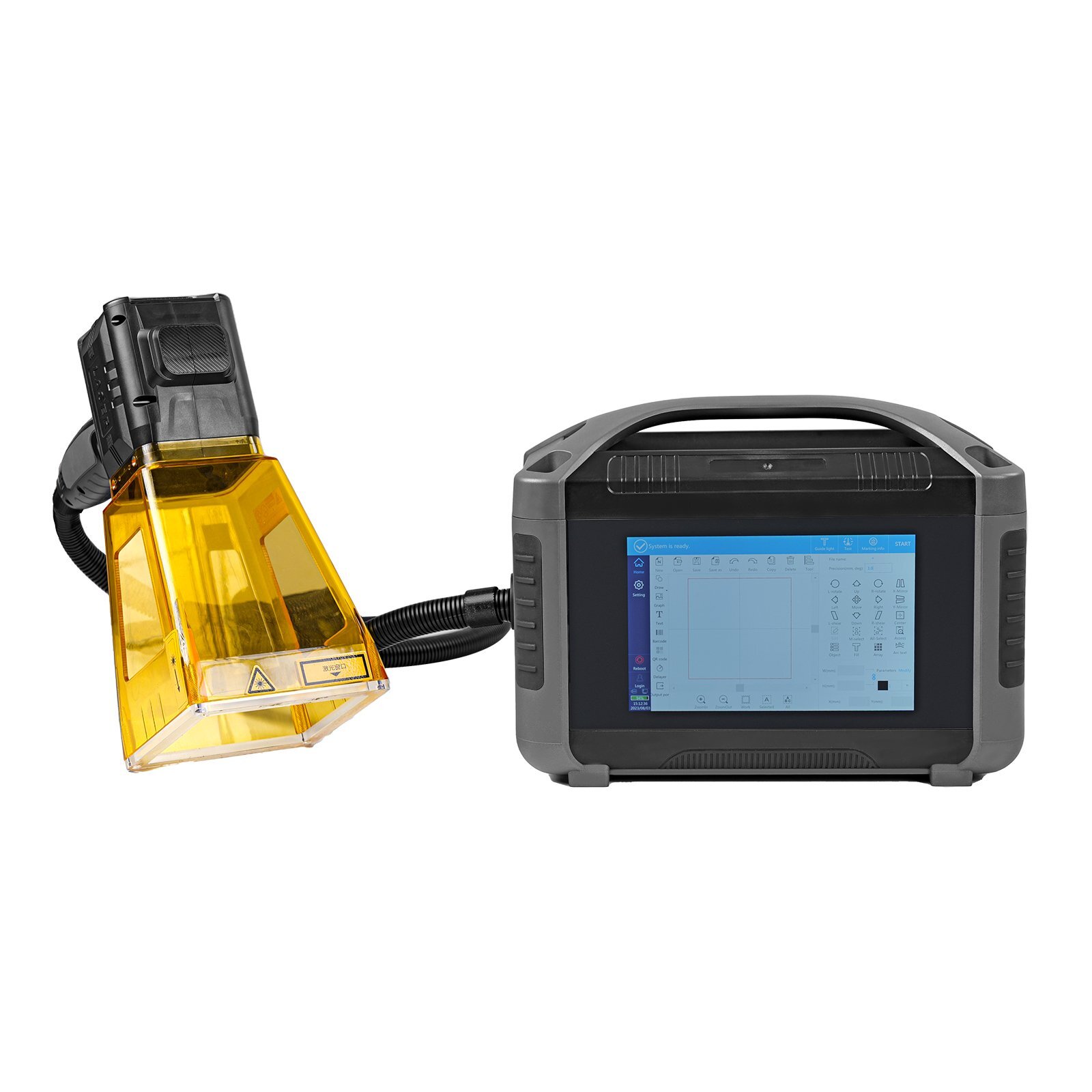

SFX 30W Portable Handheld Laser Engraving&Marking Machine Lightweight No Battery Type for High Precision Number Text Logos Patterns Marking and Engraving Fast and Convenient Marking

• The portable and lightweight handheld laser marking machine has a wide range of applications, which can be used for personalized customization marking such as QR code, bar code, text, nameplate, date, pattern and so on, meeting the needs of custom and home DIY/store/business gifts/custom/activity drainage and guest teaching/product identification.
•

• Click for battery type:

• lightweight portable laser marking machine 20W with rechargeable lithium battery
• lightweight portable laser marking machine 30W with rechargeable lithium battery

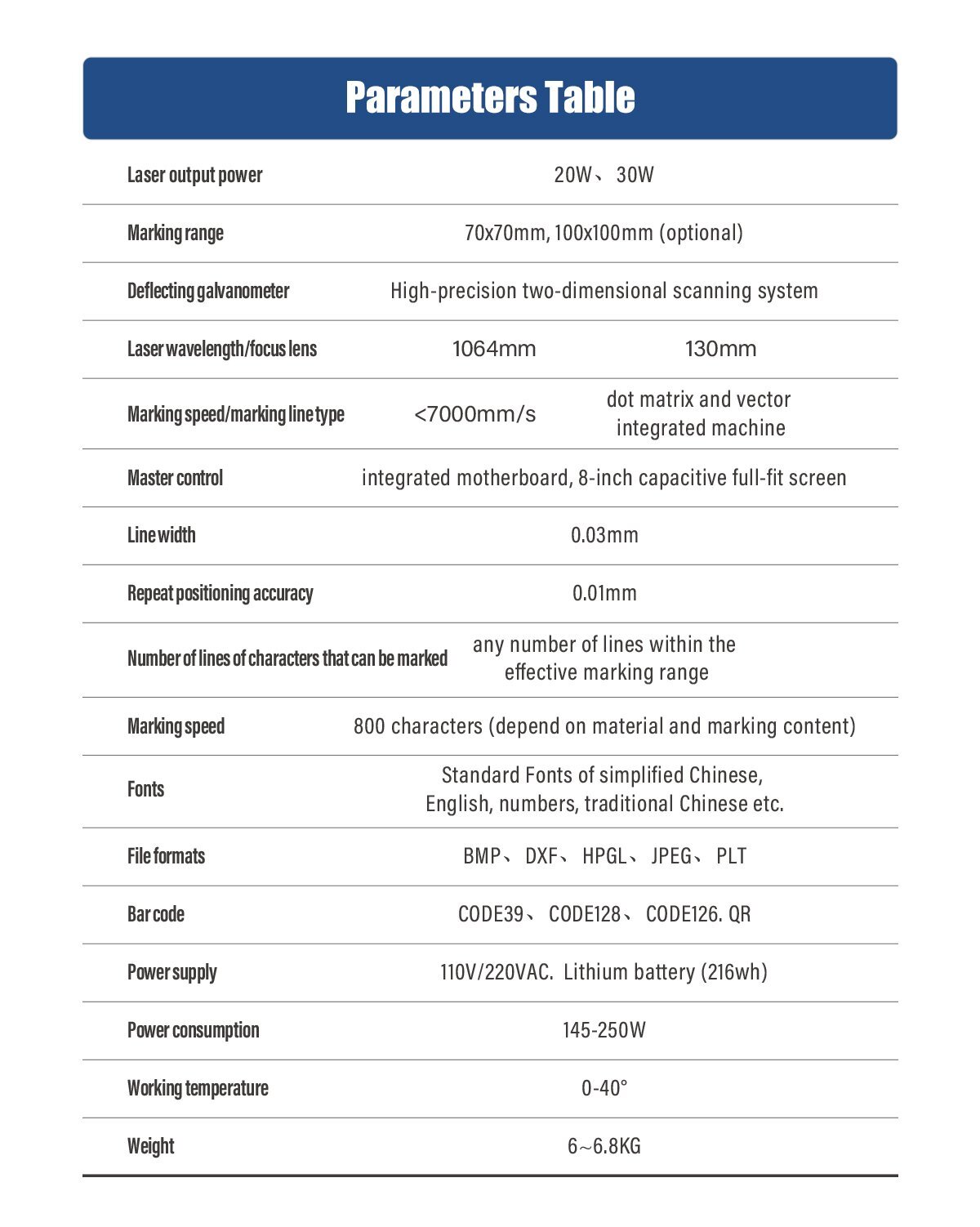

• 【Parameters】

• Laser output power: 30W
• Marking range: 70x70mm, 100x100mm (optional)
• Deflecting galvanometer: High-precision two-dimensional scanning system
• Laser wavelength/focus lens: 1064mm / 130mm
• Marking speed/marking line type: <7000mm/s dot matrix and vector integrated machine
• Master control: integrated motherboard, 8-inch capacitive full-fit screen
• Line width: 0.03mm
• Repeat positioning accuracy: 0.01mm
• Number of lines of characters that can be marked: any number of lines within the effective marking range
• Marking speed: 800 characters (depending on material and marking content)
• Fonts: Standard Fonts of simplified Chinese, English, numbers, traditional Chinese, etc.
• File formats: BMP、 DXF、 HPGL、 JPEG、 PLT
• Bar code: CODE39、 CODE128、 CODE126. QR
• Power supply: 110V/220VAC.  Lithium battery (216wh)
• Power consumption: 145-250W
• Working temperature: 0-40°
• Weight: 6-6.8KG

• 【Features of SFX handheld laser engraving machine 20W】

• 1. Hidden field lens design: Reduce accidental touches to protect the field lens

• 2. Hidden grille tunnels: Reduce wind noise, hide and protect hardware
• 3. Host handle: It is made by the nitrogen blow molding process and can withstand a force of up to 80 kg.
• 4. External USB interface: It can connect external USB for editing and marking
• 5. Stable four-corner bracket: It can be placed on a slope to fit the user's vision
• 6. Utility focal length spacers: The careful control of the focal length helps to overcome the problem of item size.
• 7. Third-party authoritative certification: Quality assurance and multiple certifications from authoritative organizations

• 【Advantages of SFX 20W handheld laser marker】

• ◆Easy to carry, small, and lightweight: the entire machine weighs 6.8 kg, including the battery; The gun head weighs 1 kg, which is lightweight and easy to carry anywhere.
• ◆ Flexible and portable, can be operated outdoors: there are optional dual power supply systems, the 110V/220V plug-in version is convenient and fast, just plug it in can start work;
• ◆ High-precision marking, high-security level, stable performance, and fast response: it uses infrared positioning, MAX laser source, and Linux system, with an 8-core processor, which achieves fast focusing and high-precision marking
• ◆ One-click marking, simple to use: One-key trigger, simple and smooth, with an 8-inch color touch screen, the interface is simple and easy to learn, and multiple formats are available for editing
• ◆ Multiple language modes are available: English, Japanese, Korean, Russian, Arabic, etc.

• 【Warranty】

• The warranty period is one year for the whole machine and 6 months for the battery.
• 1. From the date of purchasing this product, our company provides a free warranty for one year. If the machine needs to be returned to the factory for repair, the user only needs to bear the cost of two-way transportation.
• 2. This product is repaired free of charge for life, and the user only needs to bear the cost of spare parts and two-way transportation.
• Note: The date of purchase is based on the invoice date or the date of receipt of the order.
• The following scopes are not covered by warranty:
• 1. Damage caused by improper use such as violent bumping, bending, etc.
• 2. Human-caused damage.
• 3. Laser accessories and consumables are not included in the warranty (Collimator, galvanometers, field lens and other optical parts, integrated cables, etc. are not covered by the warranty).

【Shipping】

Free shipping, and door-to-door service.
